OEM customised cartridge heater

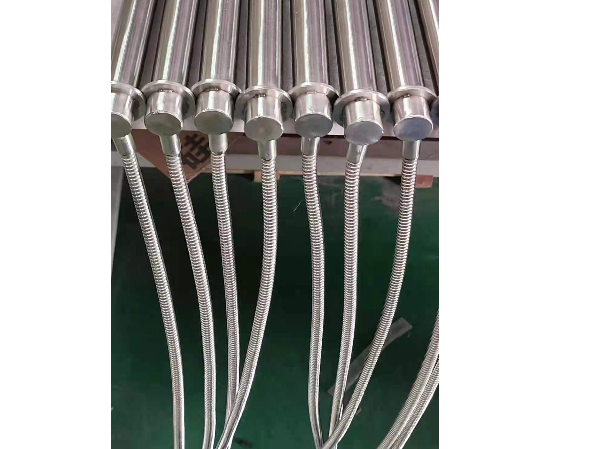

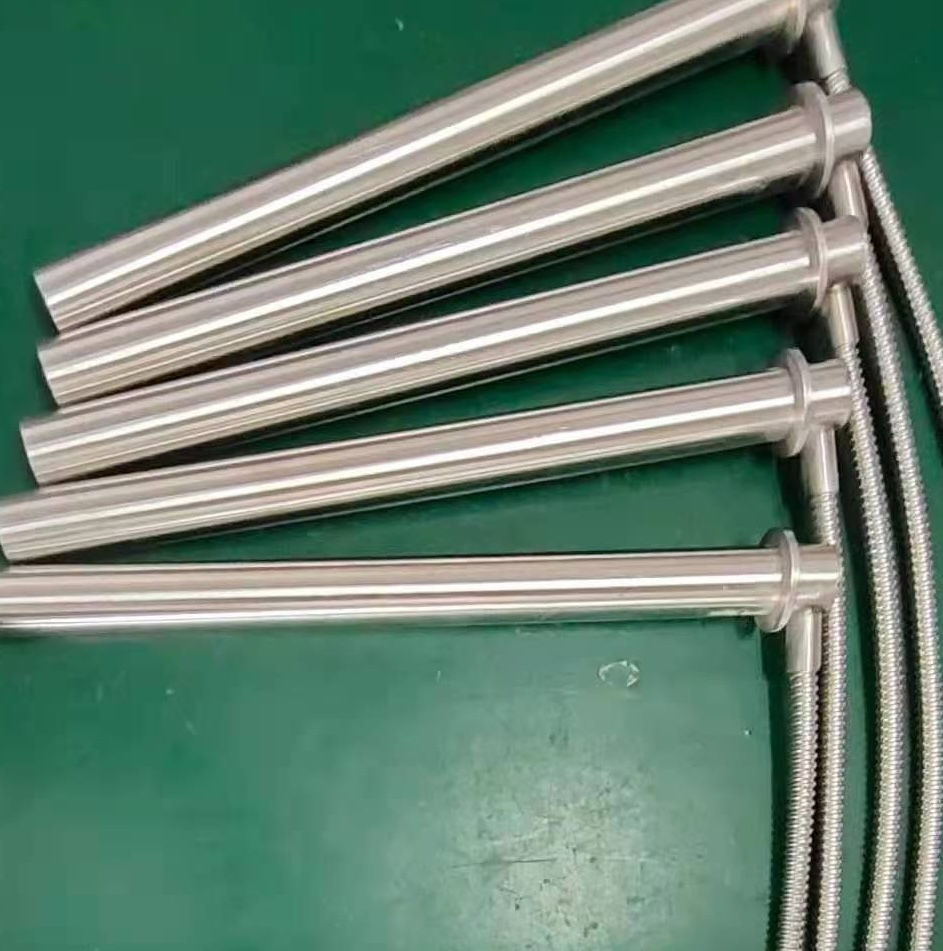

Stainless Steel Cartridge Heater

EPT Ltd  |  OEM/ODM Available  |  Custom-to-Drawing

EPT Ltd  |  OEM/ODM Available  |  Custom-to-Drawing

Product Description, cartridge heater , cartridge heating element

EPT supplies OEM customised  cartridge heaters are precision-engineered cylindrical heating elements designed for direct insertion into drilled holes in metal tooling, moulds, dies, platens, and process equipment. The stainless steel sheath combined with compacted magnesium oxide (MgO) insulation and a resistance wire coil delivers reliable, efficient, and uniform heat transfer in demanding industrial environments. And we supply PTC cartridge heater as well Available in both standard and fully custom configurations, these heaters are manufactured to drawing to match exact customer specifications.

Key Features

-        Stainless steel sheath - Provides excellent corrosion resistance, mechanical strength, and durability in harsh industrial environments.

-        Uniform heat distribution - Tightly wound resistance coil with compacted MgO insulation ensures even heat transfer and fast thermal response.

-        Flexible wattage density - Available in both low and high watt density designs to suit a wide range of heating applications and material sensitivities.

-        Low wattage density option - Gentle, gradual heating (typically below 25 W/in2) reduces the risk of hot spots and element burnout, ideal for heat-sensitive applications and extended service life.

-        High temperature capability - Operates effectively up to 750 degrees C (1400 degrees F) depending on design and sheath material selection.

-        Custom sizing - Manufactured to customer drawings in a range of diameters and lengths; OEM and ODM services available.

-        Multiple termination options - Available with flying leads, screw terminals, or ceramic terminal blocks for flexible installation.

-        Moisture-resistant sealed construction - Epoxy or ceramic end seal protects against moisture ingress and extends operational life.

-        Precise fit - Close-tolerance sheath dimensions ensure optimal contact with the bore for maximum heat transfer efficiency.

General Specifications

-        Sheath Material: Stainless steel (SUS304 / AISI316 available), incoloy, incoloy840 etc.

-        Insulation: Compacted magnesium oxide (MgO)

-        Resistance Element: Nickel-chromium resistance wire or

-        PTC cartridge heater is available  as well

-        Diameter: Custom to drawing, the minimum diameter can be 3mm up to 20mm

-        Length: Custom to drawing

-        Voltage: AC 110V / 220V / 240V ,DC24V, 48V or  as specified

-        Wattage: Custom to drawing (low or high watt density available) from 50W to 1000W

-        Termination: internal leading wire, outer lead wire , flange type, plug in type , or screw in type

-        Standard: Custom-to-drawing; OEM/ODM accepted

Typical Applications

-        Plastic injection moulds and extrusion dies

-        Hot runner systems and manifold heating

-        Packaging machinery and heat-sealing equipment

-        Food processing and catering equipment

-        Laboratory and analytical instruments

-        Semiconductor and electronics manufacturing equipment

-        Hydraulic and oil system preheating

-        Medical and pharmaceutical processing equipment

-        Aerospace and automotive tooling

-        Printing machine

Why Choose EPT

-        Experienced manufacturer with extensive industrial heating product expertise

-        Full OEM and ODM capability - custom designs accepted from drawing or sample

-        Strict quality control throughout production

-        Competitive pricing with flexible minimum order quantities

-        Responsive technical support and export sales service

For enquiries, custom orders, or technical specifications, please contact us
